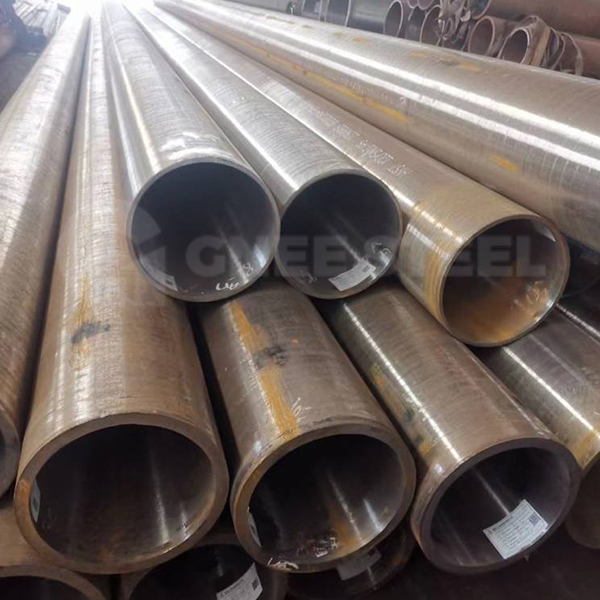

What is EN10216-2 Steel Pipe

EN10216 is a universal standard for seamless steel pipes used in pressure applications within the European Union. It consists of five parts, covering technical and process conditions for seamless steel pipes for various applications. EN10216-2 applies to non-alloy and alloy seamless steel pipes with specified high-temperature properties, detailing the requirements for these pipes when used in high-temperature environments, including chemical composition, mechanical properties, and manufacturing processes. Each part details the specific steel grade, upper and lower limits of its chemical composition, mechanical properties (room temperature and high temperature), heat treatment conditions, and specific inspection requirements for that category.


EN 10216-2 Steel Pipe Chemical Composition

Steel grades	EN10216-2 Steel Pipe CHEMICAL COMPOSITION (LADLE ANALYSIS)
	C% max	Si% max	Mn% max	P% max	S% max	Cr% max	Mo% max	Ni% max
P195GH	0.13	0.35	0.7	0.025	0.02	0.3	0.08	0.3
P235GH	0.16	0.35	1,20	0.025	0.02	0.3	0.08	0.3
P265GH	0.2	0.4	1,40	0.025	0.02	0.3	0.08	0.3
16Mo3	0.12- 0.20	0.35	0.40- 0.70	0.025	0.02	0.3	0.25- 0.35	0.3
14MoV6-3	0.10- 0.15	0.15- 0.35	0.40- 0.70	0.025	0.02	0.30- 0.60	0.50- 0.70	0.3
13CrMo4-5	0.15	0.50- 1,00	0.30- 0.60	0.025	0.02	1,00- 1,50	0.45- 0.65	0.3
10CrMo9-10	0.10- 0.17	0.35	0.40- 0.70	0.025	0.02	0.70- 1,15	0.40- 0.60	0.3

EN 10216-2 Steel Pipe Mechanical Property

EN 10216-2 Steel Pipe Mechanical properties
Steel grades	Mechanical properties during tensile testing at room temperature							Resilience
	Upper yield limit or yield strength Re or R0.2 for wall thickness of t min				Tensile strength Rm	Elongation A min%		Minimum energy average absorbed KVJ at the temperature of 0°C
	T≤16	16<T≤40	40<t≤60	60<T≤60				I		T
	MPa	MPa	MPa	MPa	MPa	I	t	20	0	-10	20	0
P195GH	195	-	-	-	320- 440	27	25	-	40	28	-	27
P235GH	235	225	215	-	360- 500	25	23	-	40	28	-	27
P265GH	265	255	245	-	410- 570	23	21	-	40	28	-	27
16Mo3	280	270	260	-	450- 600	22	20	40	-	-	27	-
14MoV6-3	320	320	310	-	460- 610	20	18	40	-	-	27	-
13CrMo4-5	290	290	280	-	440- 590	22	20	40	-	-	27	-
10CrMo9-10	280	280	270	-	480- 630	22	20	40	-	-	27	-



Outer diameter and wall thickness tolerance range

Outside Diameter D   mm	Tolerances on      D	Tolerances on T for a T/D ratio
		≤ 0,025	> 0,025	> 0,050	> 0,10
			≤ 0,050	≤ 0,10
D ≤ 219,1	± 1% or ± 0.5mm	± 12,5% or ± 0.4mm whichever is the greater
D > 219,1	whichever is the greater	± 20%	± 15%	± 12,5%	± 10% a
a For outside diameters D ≥ 355,6 mm it is permitted to exceed the upper wall thickness locally by a further 5% of the wall thickness T



Inner diameter and wall thickness tolerance range



Tolerances on inside diameter			Tolerances on T for a T/d ratio
d	d min		≤ 0,03	> 0,03	> 0,06	> 0,12
				≤ 0,06	≤ 0,12
± 1% or ± 2 mm whichever is the greater	(+ 2% ,0)or (+ 4 mm,0)	whichever is the greater	± 20%	± 15%	± 12,5%	± 10% a
a For outside diameters D ≥ 355,6 mm it is permitted to exceed the upper wall thickness locally by a further 5% of the wall thickness T

Length tolerance range

Length L	Tolerance on exact length
L ≤ 6000	10
	0
6000 < L ≤ 12 000	15
	0
L > 12 000	+ by agreement
	0

Applications:

Power Industry: Widely used in superheater tubes, reheater tubes, and water-cooled wall tubes of power plant boilers. It can withstand high-temperature, high-pressure steam media, ensuring stable operation of power generation equipment.

Chemical Industry: Used to transport various corrosive, flammable, and explosive chemical media, such as crude oil pipelines in petrochemical plants and pipelines in oil refining units. Its excellent corrosion resistance and high strength ensure the safety and stability of chemical production.

Machinery Manufacturing: In some mechanical equipment with high requirements for pipeline precision and performance, as pipelines in hydraulic and pneumatic systems, EN10216-2 European standard seamless pipes provide stable media transmission, ensuring the normal operation of equipment.

Energy Sector: Plays an important role in energy transmission pipelines such as natural gas and oil. Its reliable performance ensures the safe and efficient transportation of energy.
